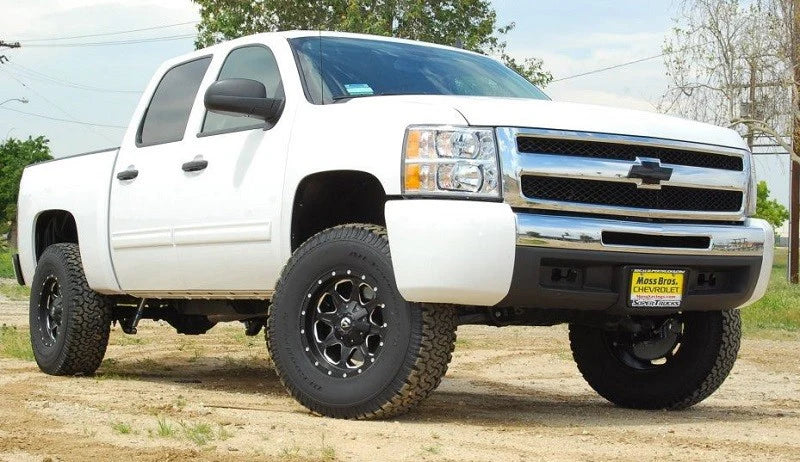

07-15 Chevy / GMC 1500 2wd 3.5-5.5" Stage 3 Suspension System

Description

PART# CSK-G1-3 IS A SPINDLE LIFT KIT THAT INCLUDES EVERYTHING NEEDED TO PROVIDE UP TO 5.5″ OF LIFT TO THE FRONT OF THE 07-2015 GM 1500 2WD PICKUP

THIS KIT ALLOWS THE INSTALLER SEVERAL HEIGHT OPTIONS FOR ONE ECONOMIC PRICE. 3.5” SPINDLES ONLY, SPINDLES AND 1” STRUT SPACER FOR 4.5” OF LIFT TO CLEAR 33” TIRES OR SPINDLES AND TWO SPACERS FOR 5.5” OF LIFT TO CLEAR 35” TIRES! (ON AN 8″ WIDE WHEEL) THE CSK-C23-32 KIT ALSO INCLUDES REAR 3″ FABRICATED BLOCKS & NEW U-BOLTS FOR A LEVEL STANCE (WITH FRONT END SET AT 4.5″ OF LIFT)

CSK-G1-3 KIT FEATURES

• LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4″ STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
• ENGINEERED, DESIGNED & FABRICATED IN HOUSE BY CST.
• 2 PAIRS OF SPACERS INCLUDED IN KIT TO PROVIDE SEVERAL LIFT HEIGHT OPTIONS.
• STEEL BRAIDED D.O.T. APPROVED BRAKE LINES INCLUDED IN KIT.
• O.E.M. HANDLING & RIDE QUALITY.
• MINIMAL TRAC-WIDTH CHANGES.
• HIGH GROUND CLEARANCE.
• ALL MADE IN THE U.S.A.!

CSK-G1-3 INCLUDES FABRICATED 3.5″ LIFT SPINDLES, 2 SETS OF SPACERS, STEEL BRAIDED BRAKELINES, BLOCKS & U-BOLTS AS WELL AS ALL NECESSARY INSTALL HARDWARE. THE CSS-C1-9 SPINDLE KIT WILL LIFT THE FRONT END,UP TO A 5.5″ AND SIT HIGH IN THE FRONT, IF YOU USE ONLY 1 SPACER IN THE FRONT SETTING THE HEIGHT TO 4.5″ THE TRUCK WELL SIT LEVEL.
